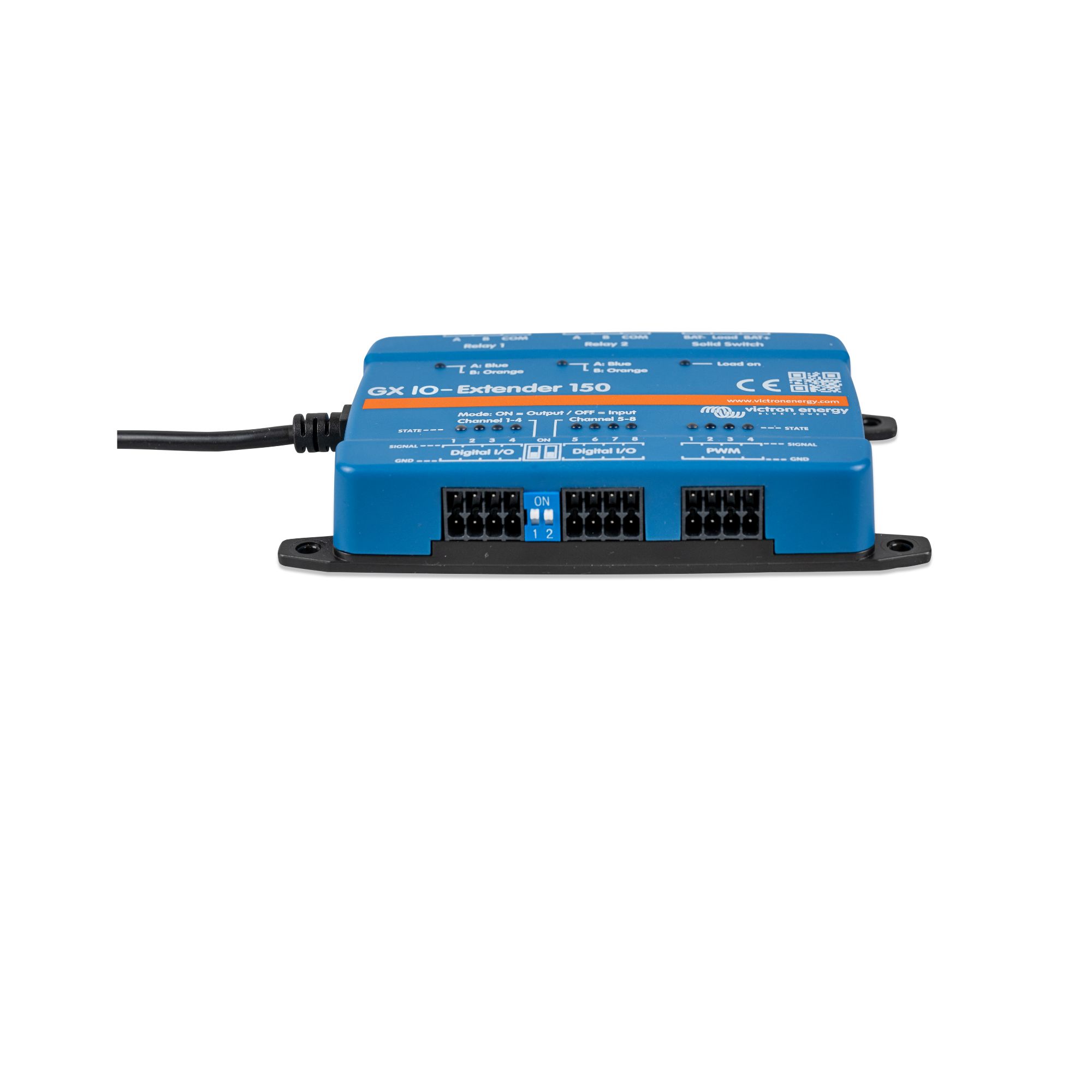

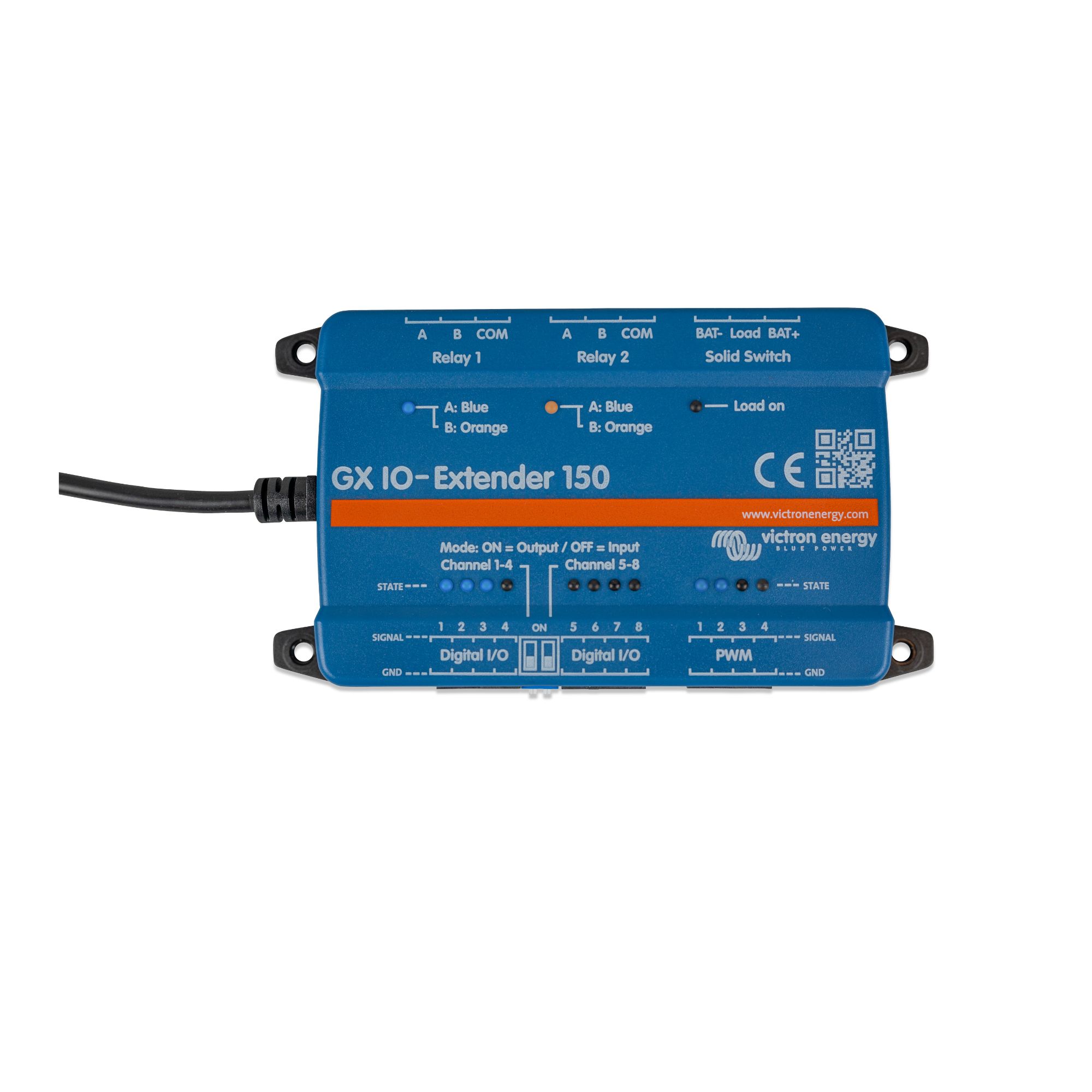

The GX 10-Extender 150 bridges the gap between your GX device and the external world, creating endless possibilities for monitoring, control, and automation.
Features
- 8 digital IOs, configurable as in two sets of four as inputs or outputs (via DIP switch).
- 4 PWM ports, 0 to 5V with 0,05 V steps for device regulation.
- 2 latching relays that maintain their state even if the power is lost.
- 1 solid switch with bat-, load, and bat+ connections for switching requirements.
The plug-and-play USB connectivity makes installation effortless. You simpley plug the GX IO-Extender 150 into an available USB port on the GX device. The inputs/outputs, PWMs and relays will immediately become available to the system.
Whether you’re managing a complex off-grid solar installation, a marine electrical system, or an industrial backup power solution, the GX IO-Extender 150 expands your ability to deliver on specific requirements:
- Monitor additional sensors and equipment
- Control external devices with precision
- Automate complex system responses
- Implement sophisticated control logic
The GX IO-Extender is not intended to be used for general load switching, but rather for signalling. The relays and solid switch have low current ratings that vary based on the voltage being used. The device can be controlled by using Node-RED on the GX device as well as Switch pane in the user interface.
