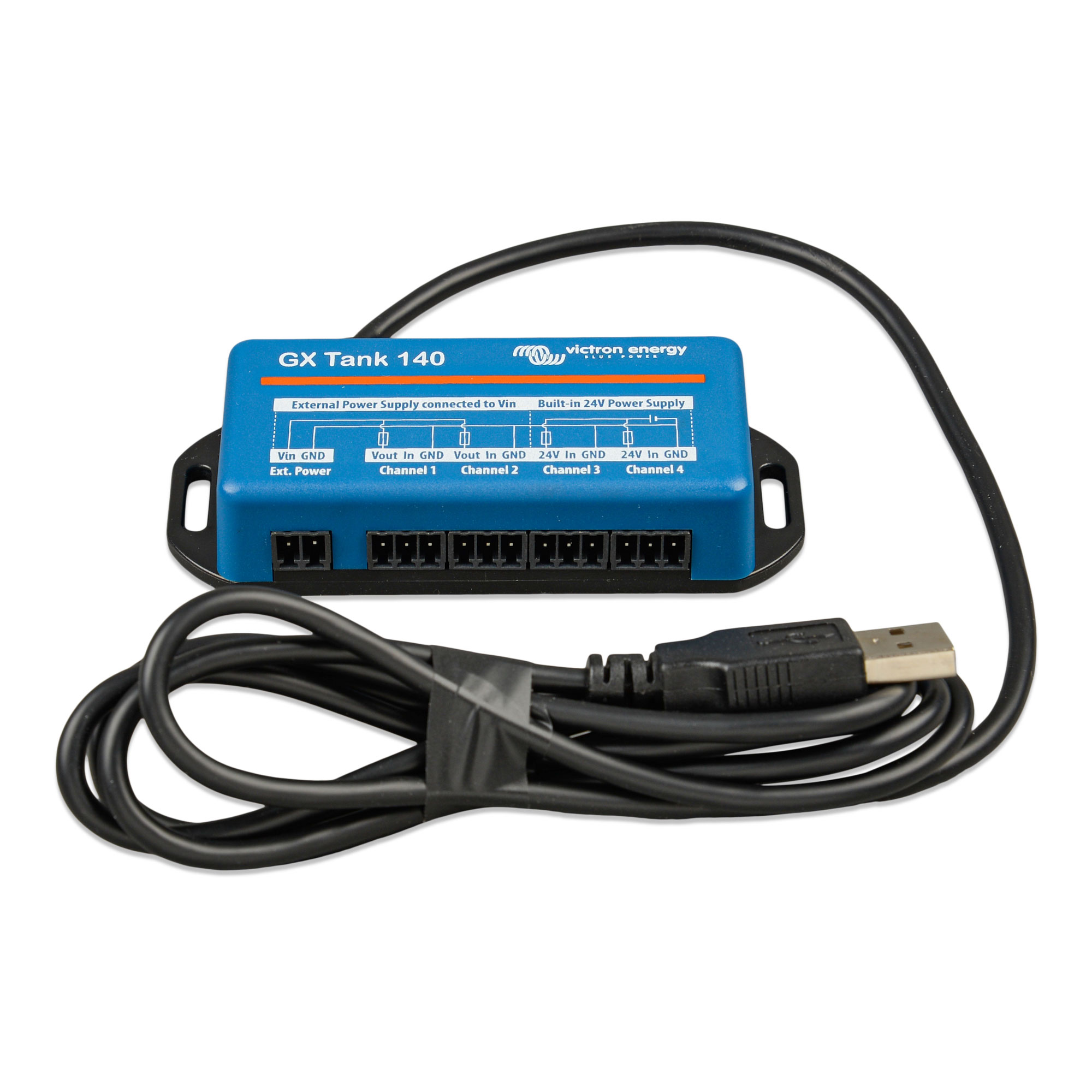

The GX Tank 140 is powered via USB connection to the GX Device. No additional power wires are required.
Tank sender wiring is kept simple. Two of the four inputs provide a 24 V power supply, to power the sender. The other two channels require an external power supply. There is a power-in terminal together with fused outputs to facilitate this. Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example 0 to 5 V.
To provide a stable damping reading, the readings are averaged. The damping can be configured between 1 and 60 seconds.
Faulty sensors and wiring issues are detected and an alarm will be raised when values are out of range.
For marine applications, the GX Device can transmit these tank levels on the NMEA 2000 network to be picked up by other displays such as a MFD.
